Experiment
shows microplastics bond with natural particles
GEOMAR Helmholtz Centre for Ocean Research
Although huge amounts of plastic are present in the oceans and new plastic
material is constantly added, the concentrations of microplastics in the
surface layer of the oceans are lower than expected.
Researchers at the GEOMAR Helmholtz Centre for Ocean Research Kiel, the Kiel Cluster of Excellence ‘The Future Ocean’ and the Helmholtz-Zentrum Geesthacht experimentally demonstrated that microplastics interact with natural particles and form so-called aggregates in seawater.
This aggregate formation could explain how microplastics sink from the ocean surface into deeper water layers.
Although huge amounts of plastic are present in the oceans and new plastic
material is constantly added, the concentrations of microplastics in the
surface layer of the oceans are lower than expected.Researchers at the GEOMAR Helmholtz Centre for Ocean Research Kiel, the Kiel Cluster of Excellence ‘The Future Ocean’ and the Helmholtz-Zentrum Geesthacht experimentally demonstrated that microplastics interact with natural particles and form so-called aggregates in seawater.
This aggregate formation could explain how microplastics sink from the ocean surface into deeper water layers.
The
oceans contain large numbers of particles of biological origin, including, for
example, living and dead plankton organisms and their faecal material. These
so-called biogenic particles interact with each other and often form lumps, or
scientifically correct aggregates, many of which sink down in the water column.
In addition to these natural particles, large amounts of plastic particles with
a size of less than five millimetres, i.e. microplastics, have been in the
oceans for some time.
Although new microplastics are constantly entering the oceans and some types of plastic have a relatively low density and therefore drift at the water surface, the microplastics concentrations at the surface of the oceans are often lower than expected. In addition, microplastics have repeatedly been found in deep-sea sediments in recent years.
What happens to the microplastics in the ocean surface layer? How do they get to great water depths? “Our hypothesis was that microplastics, together with the biogenic particles in the seawater, form aggregates that possibly sink into deeper water layers," explains Dr. Jan Michels, member of the Cluster of Excellence ‘The Future Ocean’ and lead author of the study, which was published in the international journal Proceedings of the Royal Society B today.

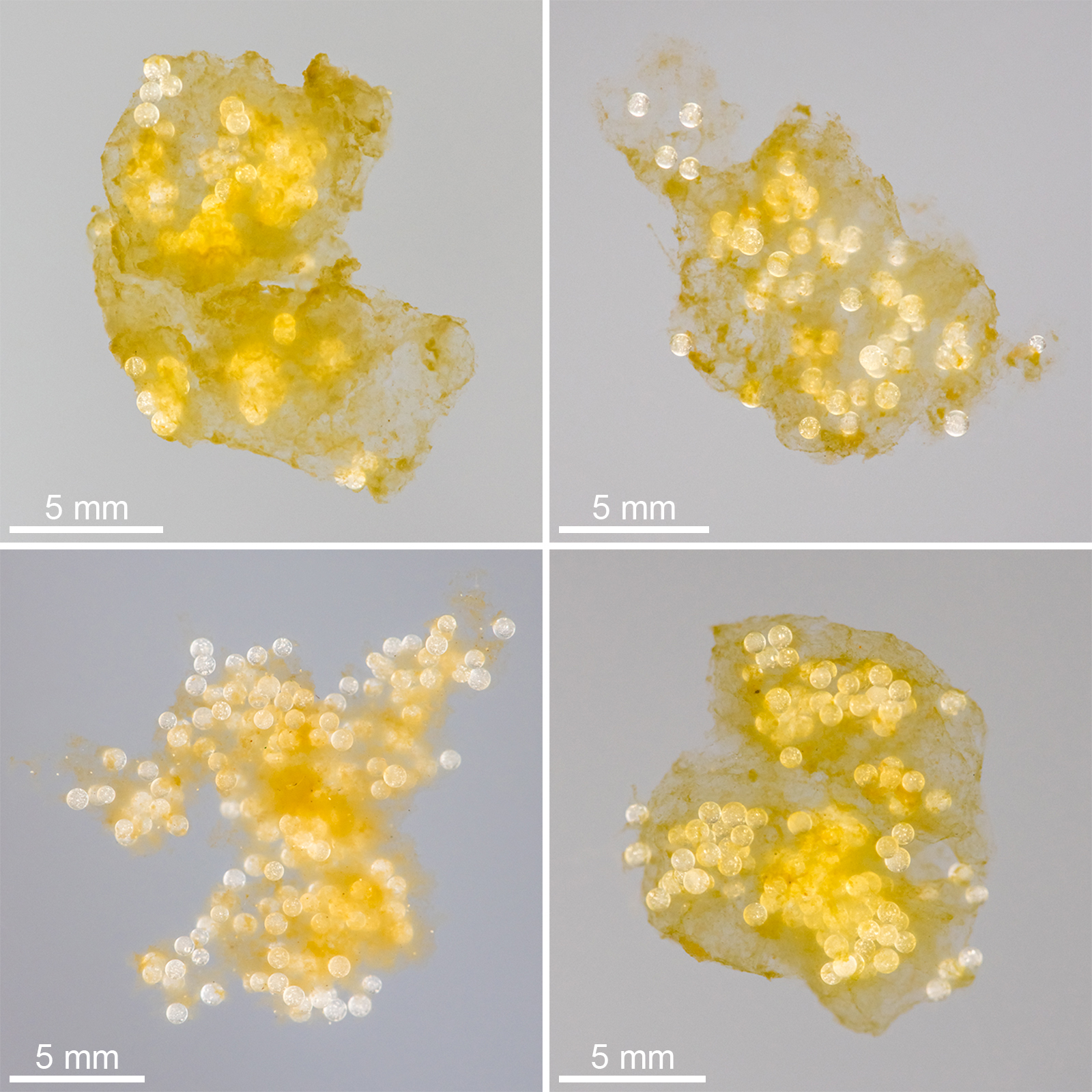

To test this hypothesis, the researchers conducted laboratory experiments with polystyrene beads featuring a size of 700 to 900 micrometres. The aggregation behaviour of the beads was compared in the presence and in the absence of biogenic particles.
The experiments provided a clear result: "The presence of biogenic particles was decisive for the formation of aggregates. While microplastic particles alone did nearly not aggregate at all, they formed quite pronounced and stable aggregates together with biogenic particles within a few days,” describes Prof. Dr. Anja Engel, head of the GEOMAR research group, in which the study was carried out. After twelve days, an average of 73 percent of the microplastics were included in the aggregates.
"In addition, we assumed that biofilms that are present on the surface of the microplastics play a role in the formation of aggregates," explains Michels, who led the investigations during his time at GEOMAR and now works at Kiel University.
Such biofilms are formed by microorganisms, typically bacteria and unicellular algae, and are relatively sticky. To investigate their influence on the aggregation, comparative experiments were conducted with plastic beads that were either purified or coated with a biofilm.
"Together with biogenic particles, the biofilm-coated microplastics formed the first aggregates after only a few hours, much earlier and faster than the microplastics that were purified at the beginning of the experiments," says Michels. On average, 91 percent of the microplastics coated with biofilm were included in aggregates after three days.
"If microplastics are coated with a biofilm and biogenic particles are simultaneously present, stable aggregates of microplastics and biogenic particles are formed very quickly in the laboratory," summarises Michels. In many regions of the oceans, the presence of both numerous biogenic particles and biofilms on the microplastics is probably a typical situation.
"This is why the aggregation processes that we observed in our laboratory experiments very likely also take place in the oceans and have a great influence on the transport and distribution of microplastics," explains Prof. Dr. Kai Wirtz, who works at the Helmholtz-Zentrum Geesthacht and was involved in the project. This could be further investigated in the future through a targeted collection of aggregates in the oceans and subsequent systematic analyses for the presence of microplastics.
Note:
This study was funded by the Kiel Cluster of Excellence ‘The Future Ocean’ and the GEOMAR Helmholtz Centre for Ocean Research Kiel.
Original Article
Michels J, Stippkugel A, Lenz M, Wirtz K, Engel A. 2018 Rapid aggregation of biofilm-covered microplastics with marine biogenic particles. Proc. R. Soc. B 20181203, dx.doi.org/10.1098/rspb.2018.1203
